Assembly instructions for the Flappie
Table of contents
- Checking the scope of delivery
- Tool list
- Preparing for installation
- Installing the cat flap
- Connection of the power supply
- Setting up and using the app (optional)
- Functional test
- Maintenance and care
1. Checking the scope of delivery
Make sure your delivery contains the following parts:
- Flappie cat flap
- Mounting frame
- Screws and dowels
- 12V power supply
- Installation instructions
- Warranty card
2. Tool list
For assembly you need the following tools:
- Cordless drill
- Phillips screwdriver
- Saw (if adjustment of the door is necessary)
- Tape measure
- Pencil
- Spirit level
3. Preparing for installation
Choice of location:
- The flap should be mounted at belly height of your cat.
- Choose a sheltered location to avoid direct exposure to the weather.
- Make sure there is enough space for installation on both sides of the door.
Prepare the cutout:
- Use the dimensions 212 mm for round cutouts or 165 × 171 mm for rectangular cutouts.
- If necessary, contact us to confirm the correct dimensions for your specific installation.
4. Installing the cat flap
- Position the template on the door and mark the cutting lines.
- Saw out the cutout carefully.

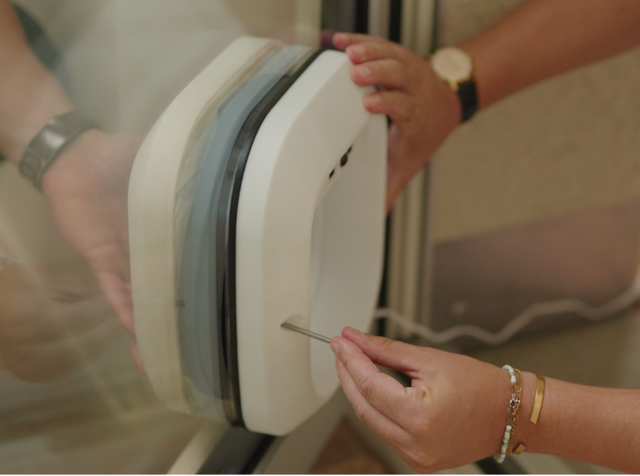

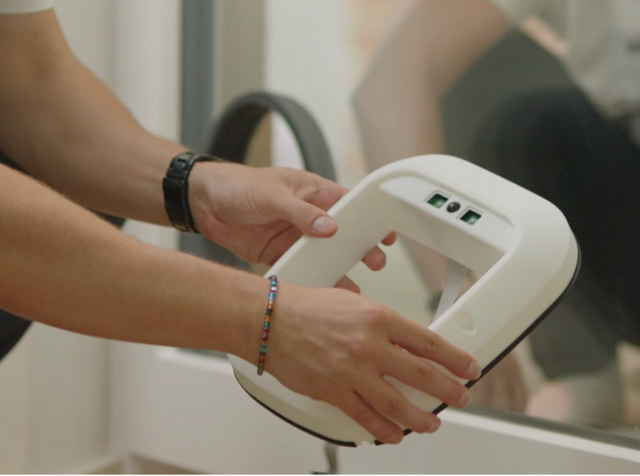

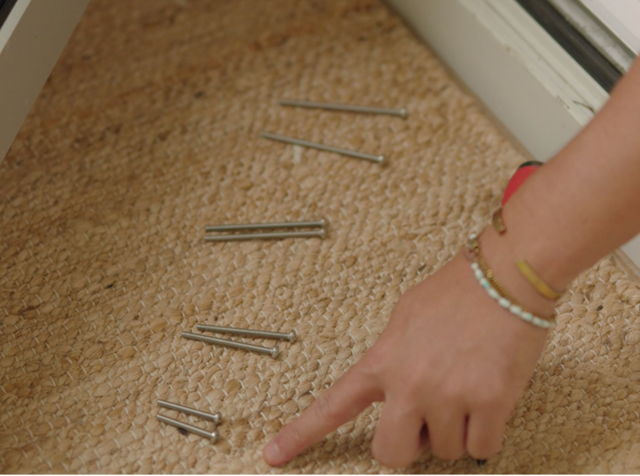

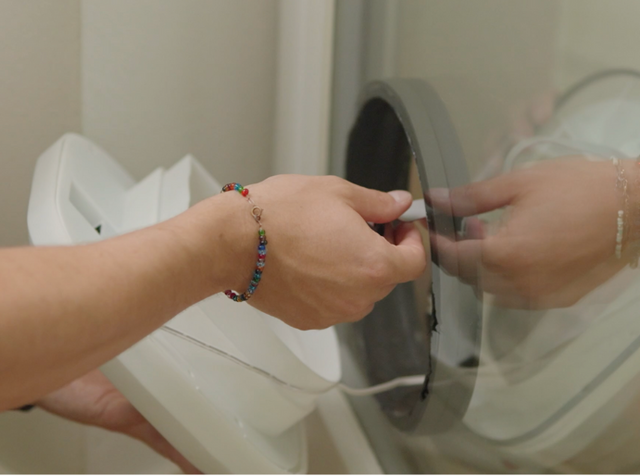

- Insert the cat flap into the cutout and secure it with the screws provided.
5. Connecting the power supply

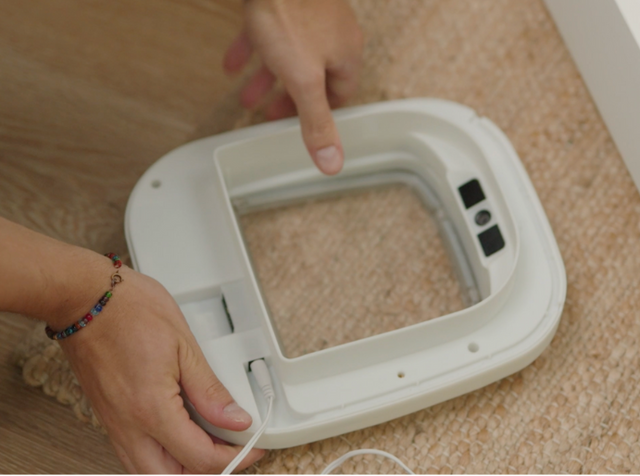

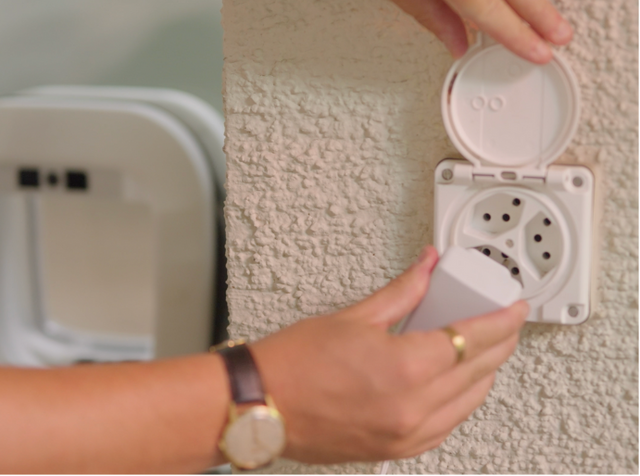

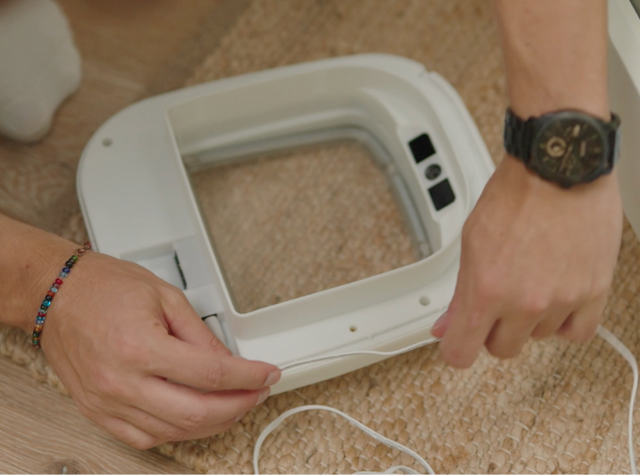

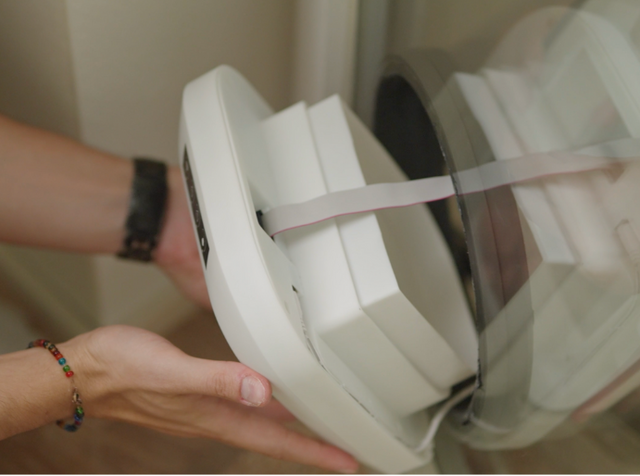

- Connect the 12V power supply to the Flappie cat flap and a nearby power socket.
6. Setting up and using the app (optional)
- Download the Flappie app for additional features like remote control and prey detection updates.
- Follow the instructions in the app to connect Flappie to your Wi-Fi and register your cats.
7. Functional test
- Check that the cat flap opens and closes smoothly.
- Test prey detection by giving your cat a toy in its mouth and observing whether the flap reacts accordingly.
8. Maintenance and care
- Clean the cat flap regularly to remove dirt and debris.
- Check the functionality of the prey detection and keep the software up to date with regular updates.
With these steps, your Flappie cat flap should be successfully installed and ready to use. If you have any questions or problems, please contact our customer support.
